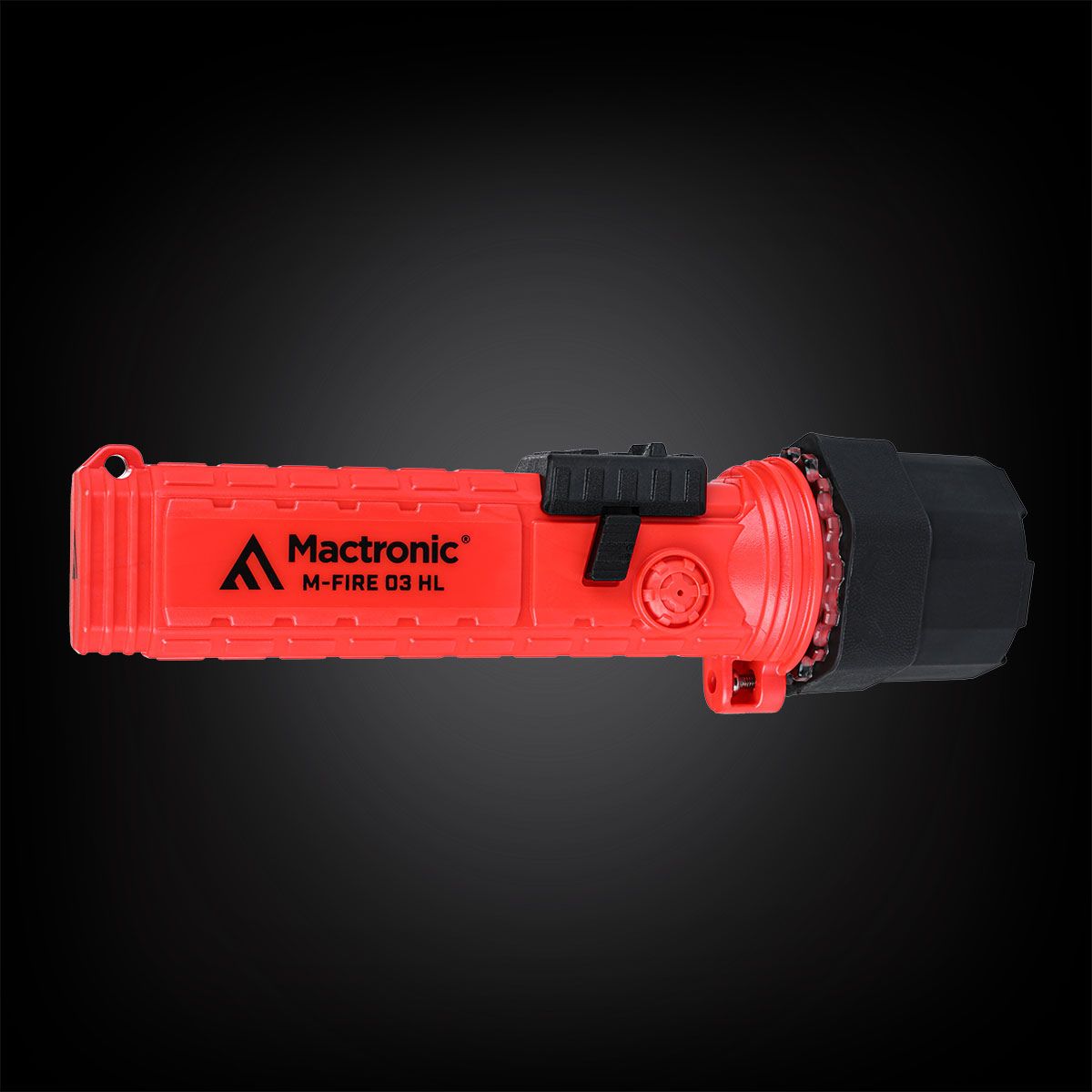

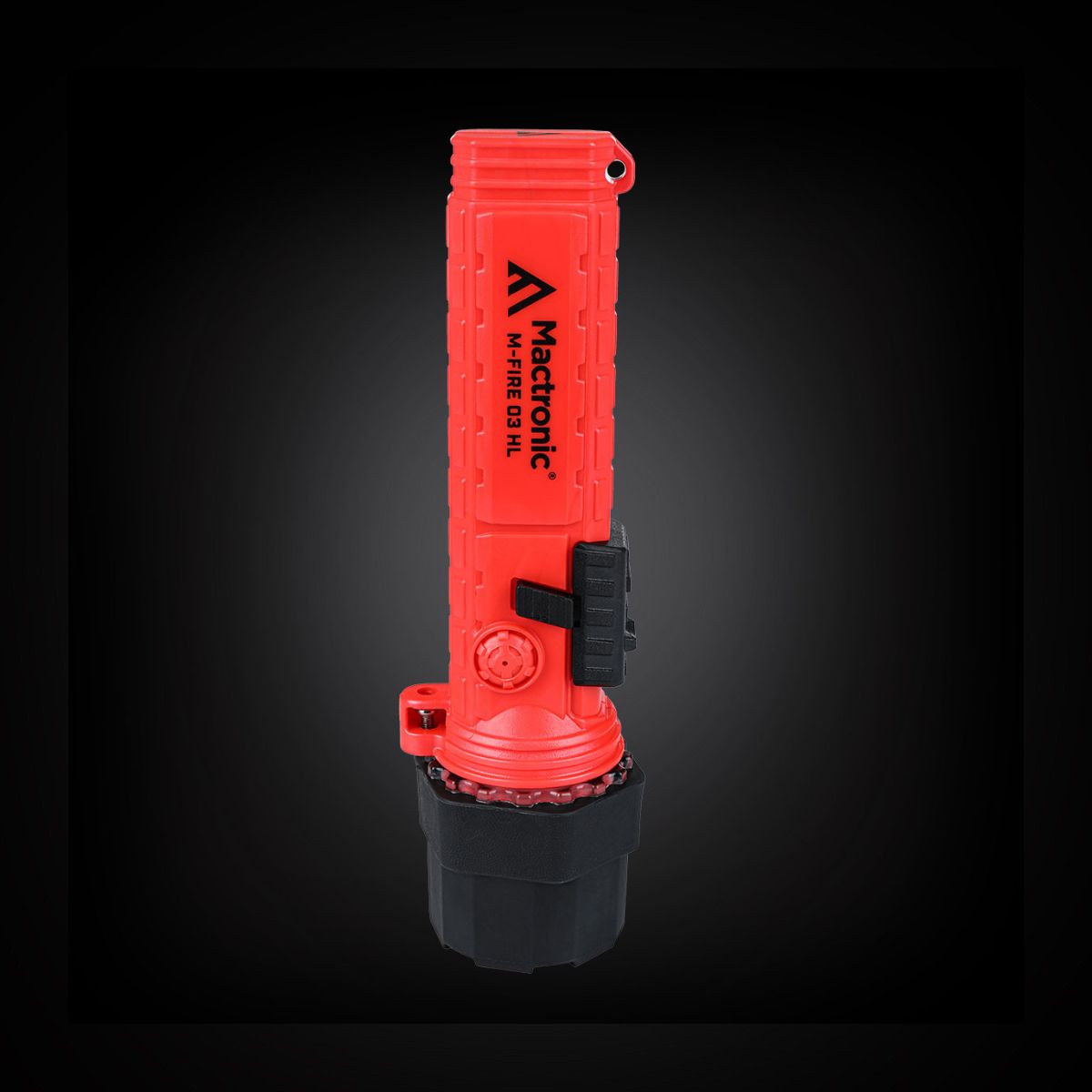

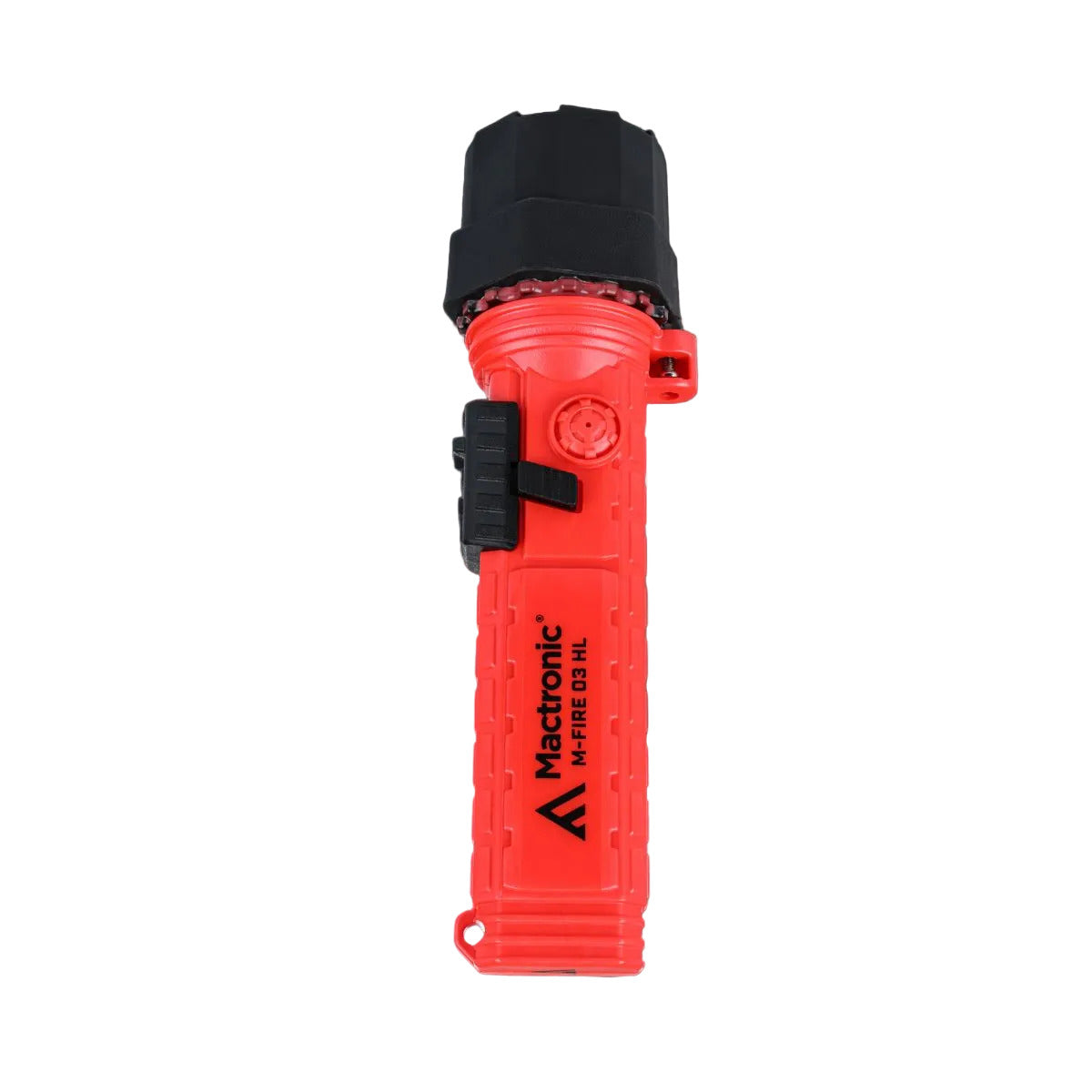

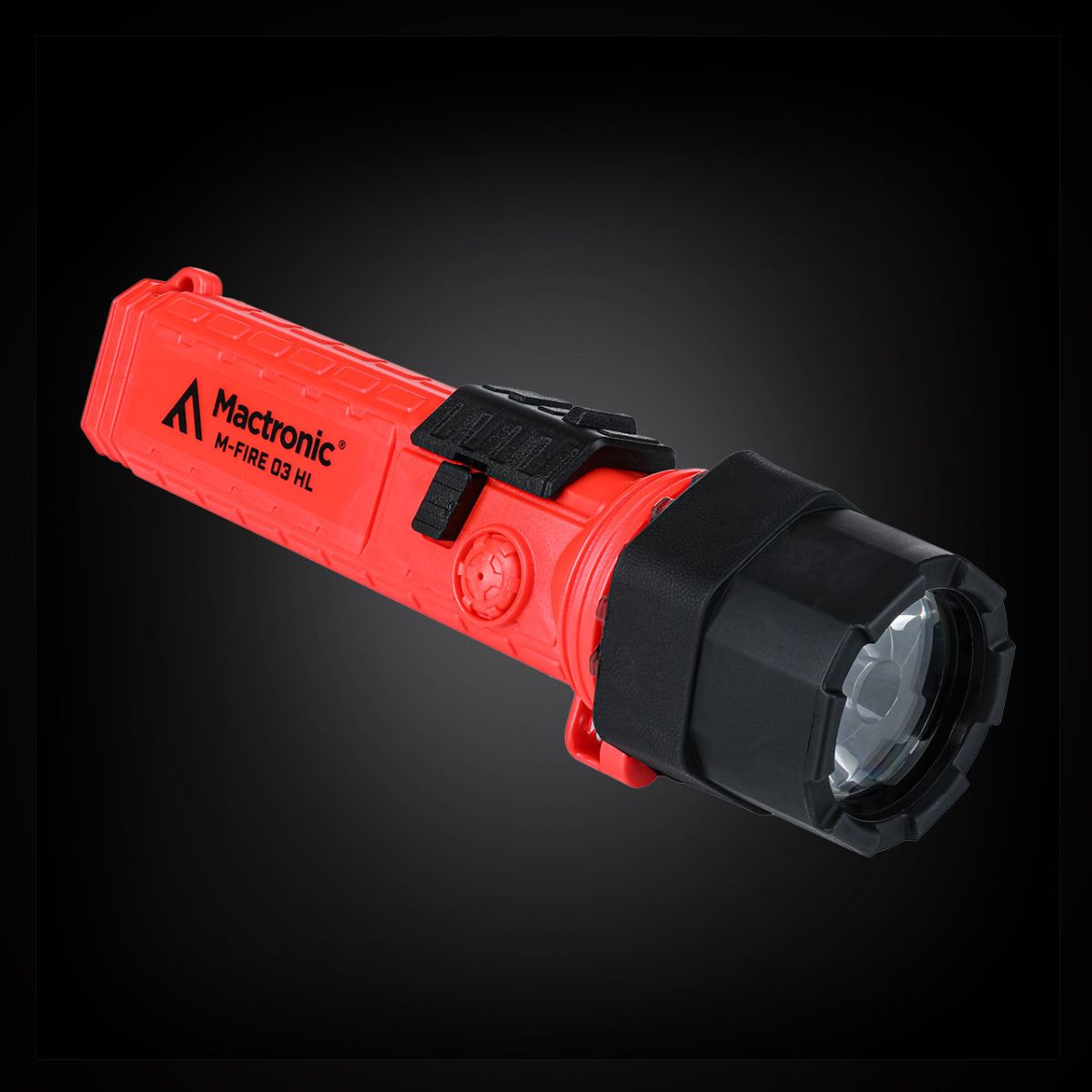

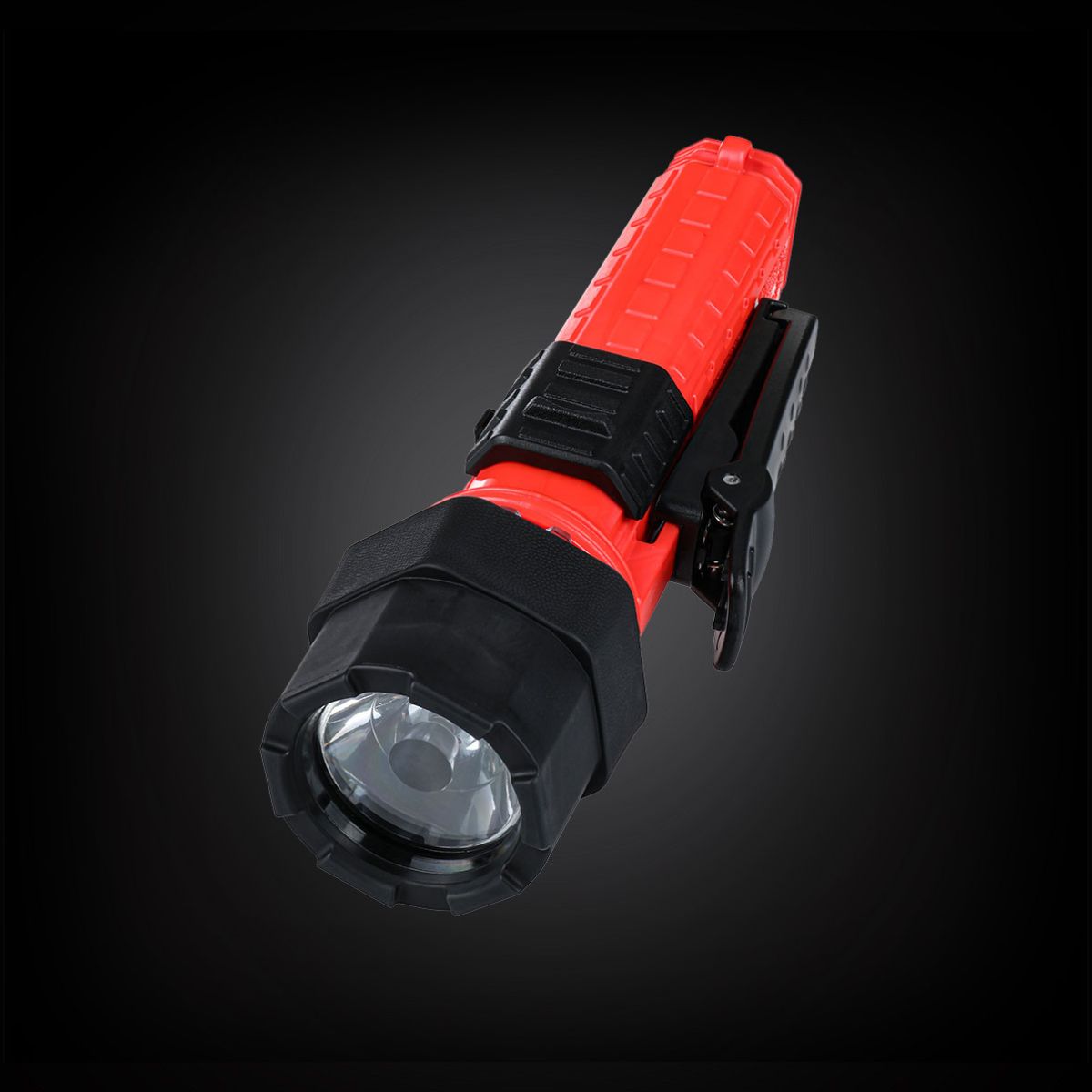

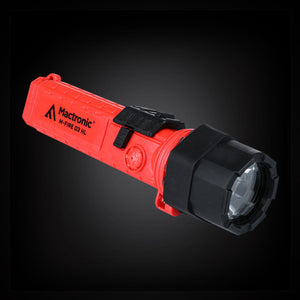

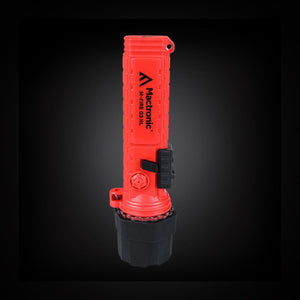

The Mactronic M-Fire 03 HL is a compact, intrinsically safe 400 lumen ATEX torch for firefighters, rescue crews and industrial workers in explosive atmospheres, designed to be carried by hand, clipped to kit or mounted on a fire helmet.
Certified for ATEX Zone 0 (II 1G Ex ia IIC T4 Ga) and mining (I M1 Ex ia I Ma), the 03 HL puts out up to 400 lumens with a 150 m beam. It is rated IPX7, so it can be submerged to 1 m for 30 minutes, and is impact-resistant to 1 m.
Runs on four standard AA batteries (supplied) and weighs just 140 g without batteries. Compatible with optional Mactronic helmet mounts for Rosenbauer Heroes Titan, Gallet and Calisia Vulcan helmets (not included).
Key Features
-
Intrinsically Safe – ATEX Zone 0 (II 1G Ex ia IIC T4 Ga) and mining (I M1 Ex ia I Ma)
-
400 lm Output – 150 m beam
-
Three Modes – High / Low / Flashing
-
IPX7 Waterproof – submersible to 1 m for 30 minutes
-

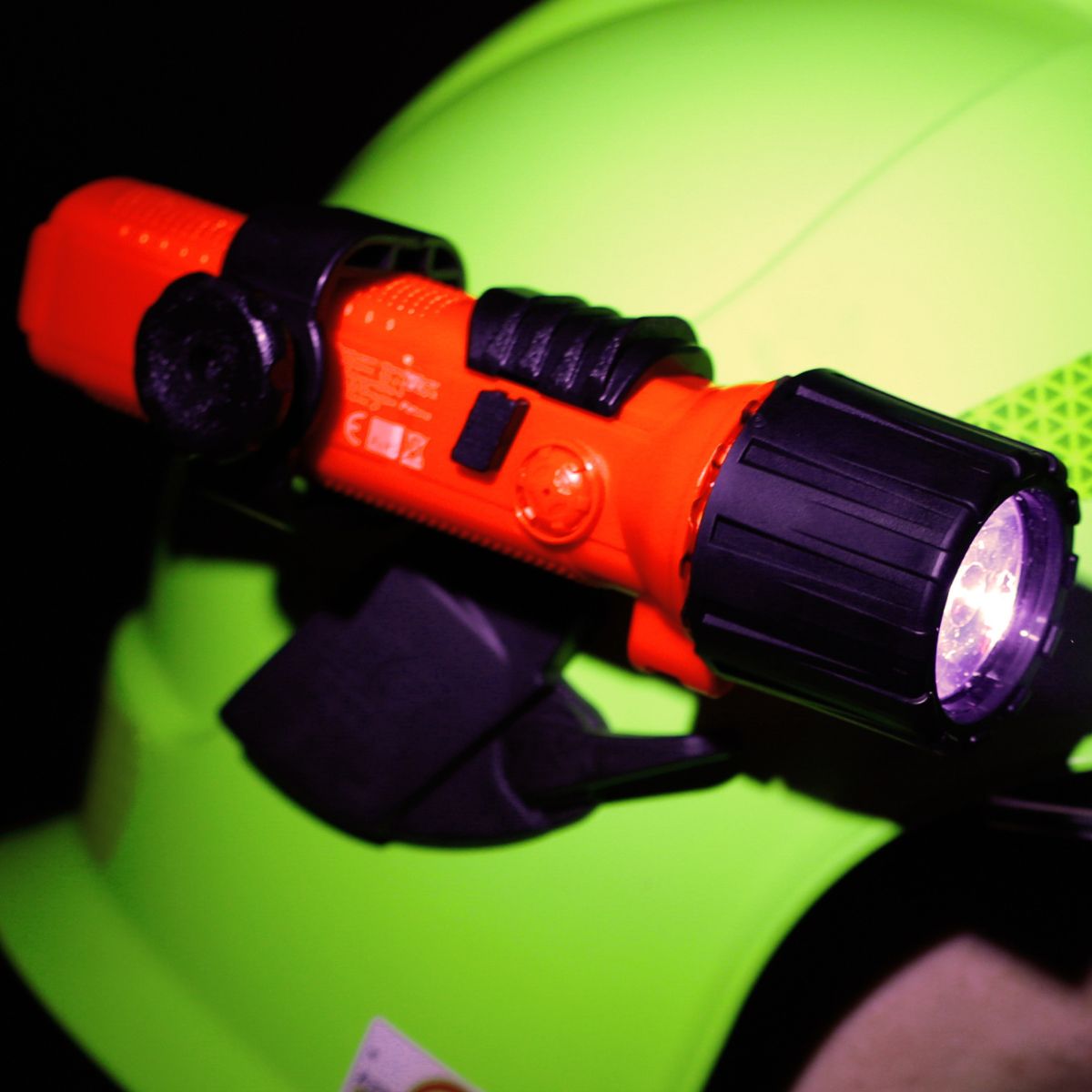

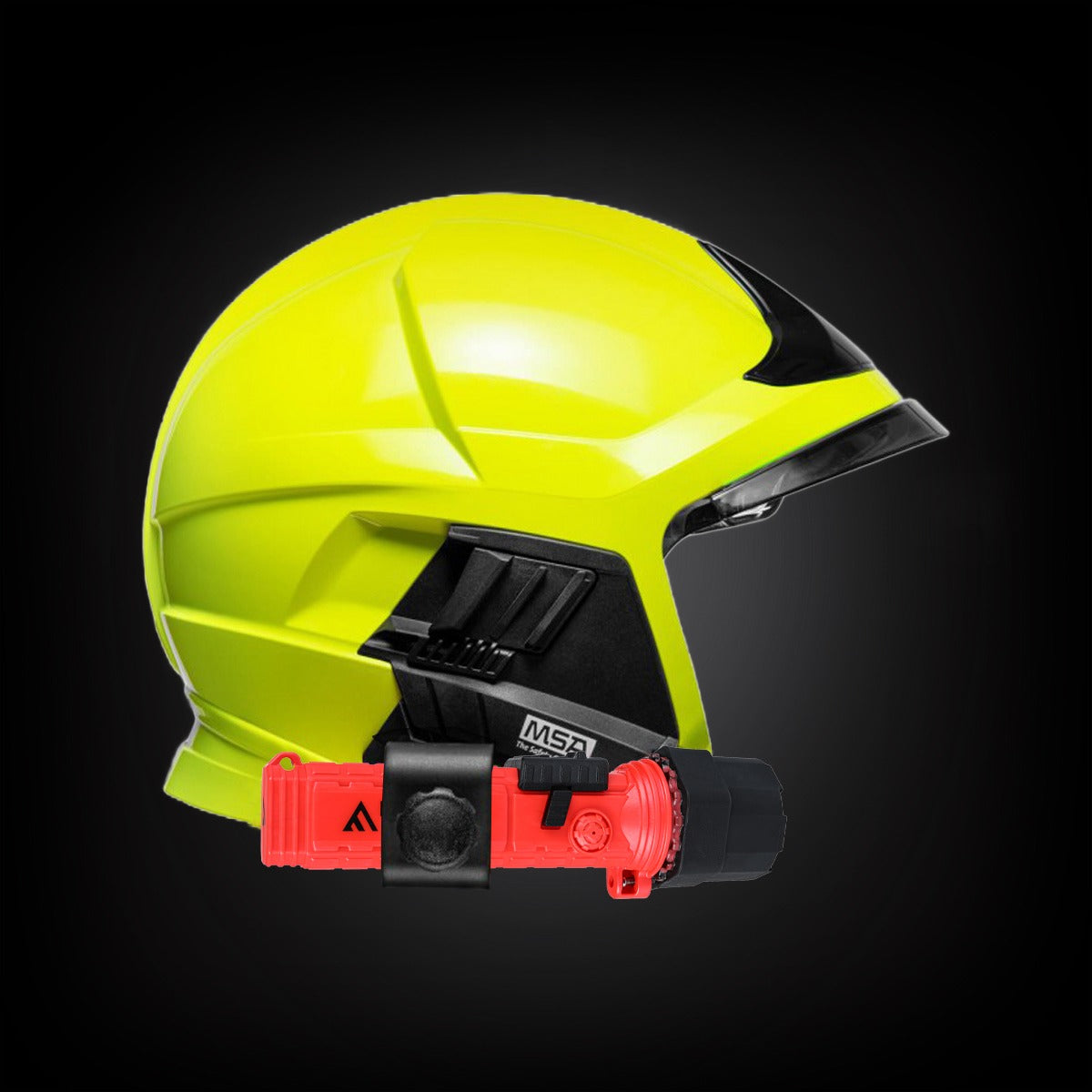

Helmet Mountable – with optional helmet mounts (not included)
-
4 × AA Powered – batteries and clip included
-
Lightweight – 140 g without batteries
- 1 m Impact Resistance
Performance Specifications
- High: 400 lm, 150 m, 8 h 10 min
- Low: 145 lm, 90 m, 13 h 10 min
- Flashing: 46 h
Peak intensity: 5,660 cd
Power: 4 × AA alkaline batteries (approved types only, see below)
IP rating: IPX7
Impact resistance: 1 m
Operating temperature: -20 °C to +40 °C
Dimensions: 172 × 47 × 47 mm
Weight: 140 g (270 g with batteries)
Certification
• ATEX Zone 0 – EU-Type Examination Certificate UL 22 ATEX 2935X (UL International Demko, Notified Body 0539)
• Marking: I M1 Ex ia I Ma / II 1G Ex ia IIC T4 Ga
• CE marked under the ATEX Directive 2014/34/EU (recognised for sale in Great Britain)
• Tested to EN IEC 60079-0:2018, EN 60079-11:2012 and EN 50303:2000
Conditions for Safe Use
- Use only the following AA alkaline batteries: Duracell MN1500, Energizer E91, Rayovac 815, Ansmann 1502-0002 or Ansmann 5015548.
- Change batteries only in a non-hazardous area, and do not open the torch in a hazardous area.
- Tighten the screw securely after replacing the batteries.
- Ambient temperature range: -20 °C to +40 °C.
In the Box
M-Fire 03 HL torch, 4 × AA batteries, clip, user manual.
Applications
- Firefighting and rescue (hand-held or helmet-mounted)
- Mining and tunnelling
- Petrochemical and industrial sites
- Confined space entry
- Water rescue and wet environments
📄Declaration of Conformity (ATEX)
📄User Manual
📄 ATEX EU-Type Examination Certificate (UL 22 ATEX 2935X): available on request
Manufacturer: MACTRONIC Group Sp. z o.o., ul. Stargardzka 4, 54-156 Wrocław, Poland. UK importer: Fire and Rescue Tools Ltd, 119 Bispham Road, Southport, PR9 7BJ.
