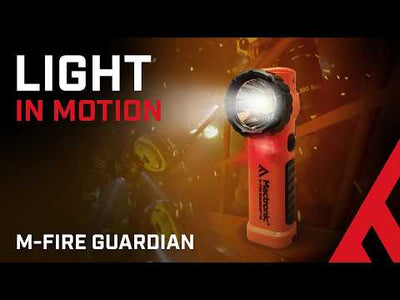

The Mactronic M-Fire Guardian XR is an intrinsically safe, rechargeable right-angle ATEX torch built for firefighters, rescue teams and industrial workers operating in explosive atmospheres.
Certified for ATEX Zone 0 (II 1G Ex ia IIC T4 Ga) and mining (I M1 Ex ia I Ma), the Guardian XR combines a powerful 240 lumen focused spot beam with a separate red safety light for marking positions, signalling to crews and traffic control at incident scenes, without dazzling colleagues.
The built-in 2600 mAh Li-ion battery charges in its dedicated charging base from the mains or a vehicle (12/24 V), so the torch is always ready to grab from the appliance. A battery level indicator shows remaining charge at a glance, and the rubberised, glove-friendly body is rated IP67 and drop-tested to 1 m.
Key Features
-
Intrinsically Safe – ATEX Zone 0 (II 1G Ex ia IIC T4 Ga) and mining (I M1 Ex ia I Ma)
-
Dual Beam – 240 lm focused spot plus red safety light, usable separately or together
-
Rechargeable – built-in Li-ion 3.6 V 2600 mAh, approx. 4 hour charge
-

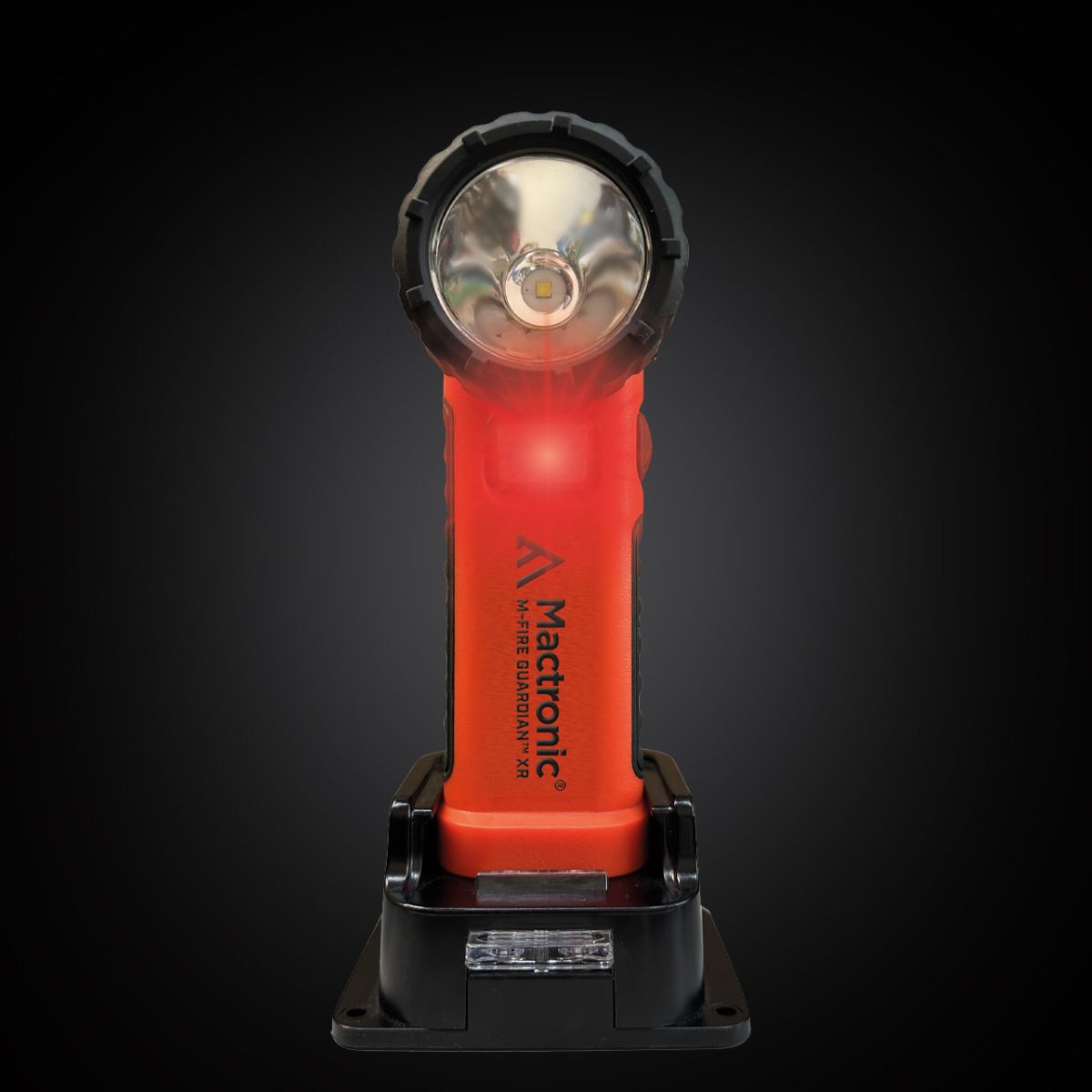

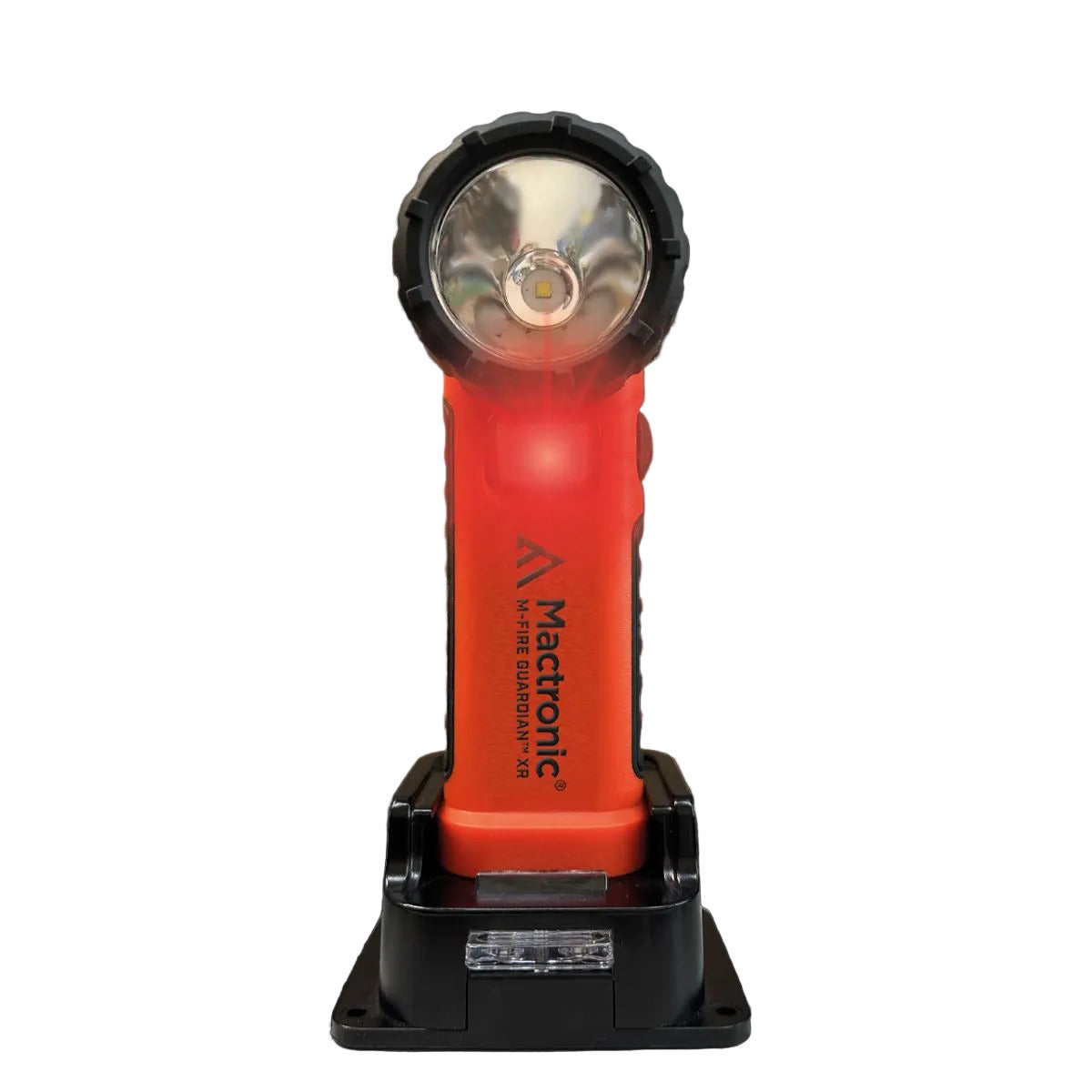

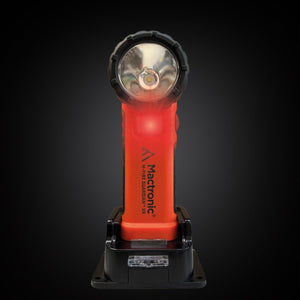

Charging Base – supplied with 230 V mains charger and 12/24 V vehicle charger
-
Battery Level Indicator – avoids unexpected power loss
-

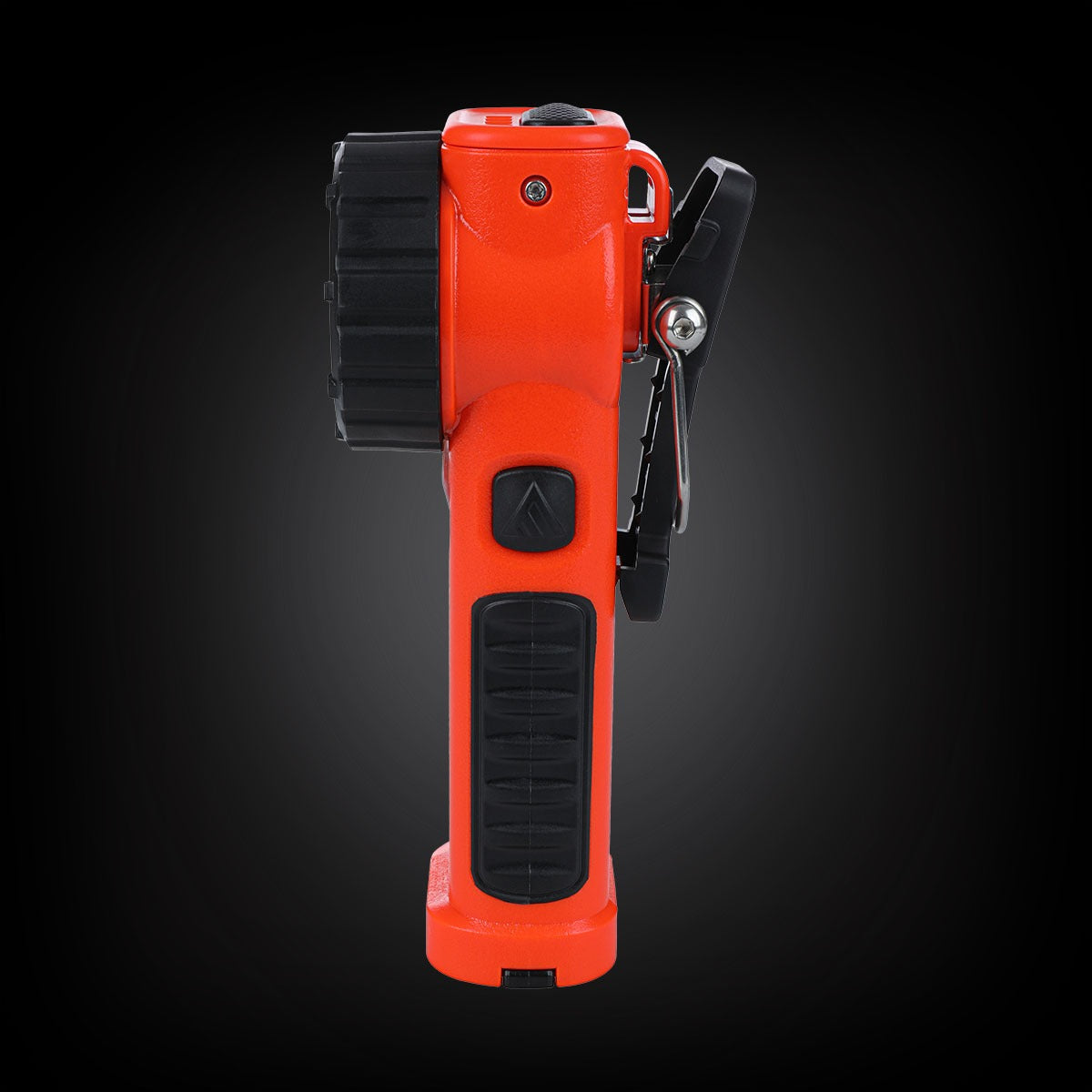

Right-Angle Design – chest or belt mounting for hands-free use with the heavy-duty clip
-
IP67 – dust tight and waterproof to 1 m for 30 minutes
-
1 m Impact Resistance – rubberised, glove-friendly housing
Performance Specifications
- Spot high: 240 lm, 205 m, 6 h
- Spot medium: 120 lm, 145 m, 12 h 20 min
- Spot low: 70 lm, 115 m, 20 h 45 min
- Spot survival: 6 lm, 224 h
- Spot flashing: 12 h 15 min
- Red light constant: 13 lm, 27 h 45 min
- Red light flashing: 56 h 20 min
- Spot + red light: 240 lm, 5 h 30 min
Peak intensity: 10,350 cd
Battery: Li-ion 3.6 V 2600 mAh (built in, not user replaceable)
Charging time: approx. 4 hours
IP rating: IP67
Impact resistance: 1 m
Dimensions: 177 × 64 × 67 mm
Weight: 305 g
Certification
• ATEX Zone 0 – EU-Type Examination Certificate CSANe 22ATEX1206X (CSA Group Netherlands, Notified Body 2813)
• Marking: I M1 Ex ia I Ma / II 1G Ex ia IIC T4 Ga
• CE marked under the ATEX Directive 2014/34/EU (recognised for sale in Great Britain)
• Tested to EN IEC 60079-0:2018 and EN 60079-11:2012
Conditions for Safe Use
- Charge only in a non-hazardous area, using the charging base supplied with the torch (max. 5.55 V / 1.0 A), at an ambient temperature of 0 °C to 40 °C.
- Do not open the torch in a hazardous area. The Li-ion cell is not user replaceable.
- Protect from sustained exposure to direct sunlight.
- Use only where there is a low risk of mechanical impact.
In the Box
M-Fire Guardian XR torch, charging base, 230 V mains charger (European 2-pin plug, use with a standard UK plug adapter), 12/24 V vehicle charger, user manual.
Applications
- Firefighting and rescue operations
- Incident scene and traffic management
- Oil, gas and petrochemical sites
- Chemical and pharmaceutical plants
- Mining and tunnelling
- Confined space entry
📄Declaration of Conformity (ATEX)
📄User Manual
📄 ATEX EU-Type Examination Certificate (CSANe 22ATEX1206X): available on request
Manufacturer: MACTRONIC Group Sp. z o.o., ul. Stargardzka 4, 54-156 Wrocław, Poland. UK importer: Fire and Rescue Tools Ltd, 119 Bispham Road, Southport, PR9 7BJ.
